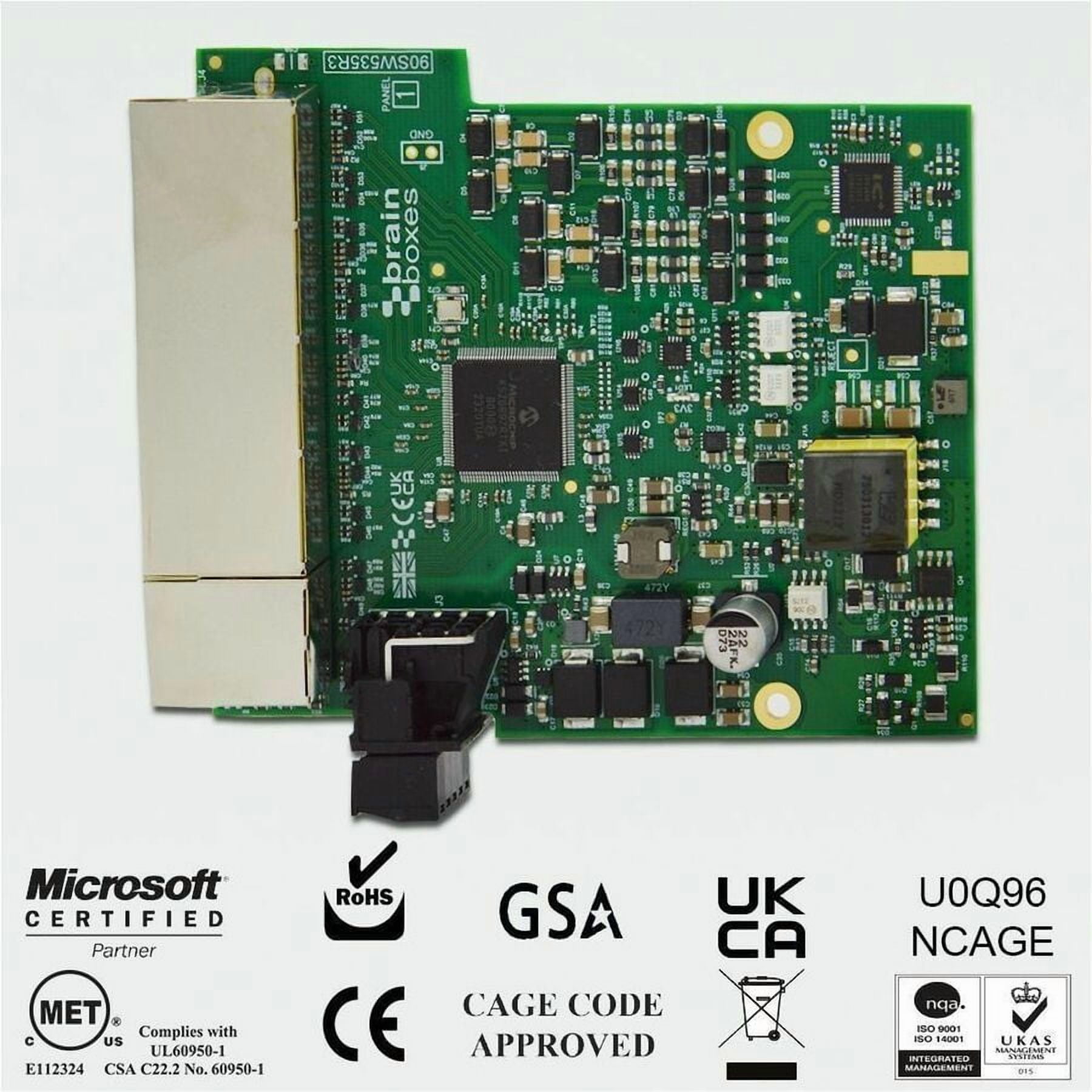

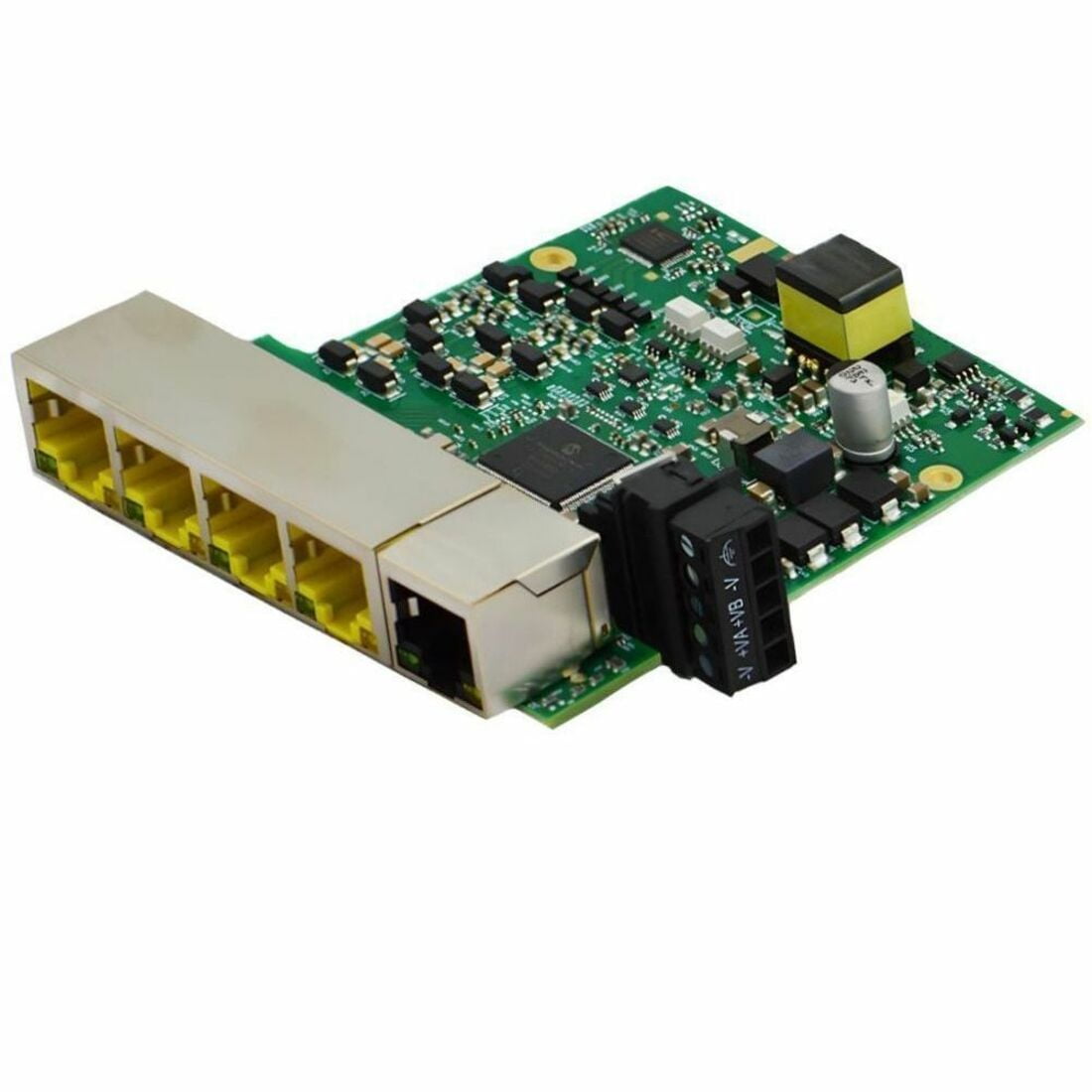

Brainboxes Embedded Industrial 5 Port PoE+ Gigabit Ethernet Switch SW135

<div class="product_header">General Information</div><table class="product_table"><tbody><tr><td class="product_attribute_value" colspan="2"><p>Compact embeddable 5 Port PoE+ Gigabit Ethernet device.</p><p>Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.</p><p>Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.</p><p>Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more</p></td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Technical Information</div><table class="product_table"><tbody><tr><td class="product_attribute">Features:</td><td class="product_attribute_value">LED Indicator</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Interfaces/Ports</div><table class="product_table"><tbody><tr><td class="product_attribute">Total Number of Network Ports:</td><td class="product_attribute_value">5</td></tr><tr><td class="product_attribute">Network (RJ-45):</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">Port/Expansion Slot Details:</td><td class="product_attribute_value">5 x Gigabit Ethernet PoE+</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Media &amp; Performance</div><table class="product_table"><tbody><tr><td class="product_attribute">Media Type Supported:</td><td class="product_attribute_value">Twisted Pair</td></tr><tr><td class="product_attribute">Ethernet Technology:</td><td class="product_attribute_value">Gigabit Ethernet</td></tr><tr><td class="product_attribute">Network Technology:</td><td class="product_attribute_value">100/1000Base-T</td></tr><tr><td class="product_attribute">Maximum Data Transfer Rate:</td><td class="product_attribute_value">128 MB/s</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Network &amp; Communication</div><table class="product_table"><tbody><tr><td class="product_attribute">Layer Supported:</td><td class="product_attribute_value">2</td></tr><tr><td class="product_attribute">Networking Standards:</td><td class="product_attribute_value">IEEE 802.3af</td></tr><tr><td class="product_attribute">Networking Standards:</td><td class="product_attribute_value">IEEE 802.3at</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Management &amp; Protocols</div><table class="product_table"><tbody><tr><td class="product_attribute">Manageable:</td><td class="product_attribute_value">No</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Power Description</div><table class="product_table"><tbody><tr><td class="product_attribute">PoE (RJ-45) Port:</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">PoE Budget:</td><td class="product_attribute_value">90 W</td></tr><tr><td class="product_attribute">Input Voltage:</td><td class="product_attribute_value">44 V DC</td></tr><tr><td class="product_attribute">Input Voltage:</td><td class="product_attribute_value">57 V DC</td></tr><tr><td class="product_attribute">Power Source:</td><td class="product_attribute_value">PoE</td></tr><tr><td class="product_attribute">Power Source:</td><td class="product_attribute_value">DC</td></tr><tr><td class="product_attribute">Power Source:</td><td class="product_attribute_value">USB</td></tr><tr><td class="product_attribute">Power Consumption:</td><td class="product_attribute_value">5.50 W</td></tr><tr><td class="product_attribute">Plug/Connector Type:</td><td class="product_attribute_value">Terminal Block</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Physical Characteristics</div><table class="product_table"><tbody><tr><td class="product_attribute">Form Factor:</td><td class="product_attribute_value">Compact</td></tr><tr><td class="product_attribute">Height:</td><td class="product_attribute_value">0.8"</td></tr><tr><td class="product_attribute">Width:</td><td class="product_attribute_value">3.4"</td></tr><tr><td class="product_attribute">Depth:</td><td class="product_attribute_value">4.1"</td></tr><tr><td class="product_attribute">Weight (Approximate):</td><td class="product_attribute_value">3.17 oz</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Miscellaneous</div><table class="product_table"><tbody><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">Network</td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">PoE Phone</td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">CCTV System</td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">Wireless Access Point</td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">Network Video Recorder</td></tr><tr><td class="product_attribute">Application/Usage:</td><td class="product_attribute_value">Industrial</td></tr><tr><td class="product_attribute">Country of Origin:</td><td class="product_attribute_value">Great Britain</td></tr><tr><td class="product_attribute">TAA Compliant:</td><td class="product_attribute_value">Yes</td></tr><tr><td class="product_attribute">Environmental Compliance:</td><td class="product_attribute_value">Waste Electrical and Electronic Equipment Directive (WEEE)</td></tr></tbody></table><p class="product_spacer"></p><div class="product_header">Warranty</div><table class="product_table"><tbody><tr><td class="product_attribute">Limited Warranty:</td><td class="product_attribute_value">Lifetime</td></tr></tbody></table>

• Streamlined installation - power and data over the same cable
• 4 PoE+ capable ports - fully compliant to IEEE 802.3af/at
• High PoE power budget 90W @ 70?C between all 4 PoE ports simultaneously - efficiently deliver power to connected devices
• SKU : 0837324005066
• Condition : NEW
• MPN : SW135
